2026 Upgrade: The All-in-One Mobile Crushing Solution for LatAm Projects
In the rapidly evolving landscape of Latin American infrastructure—from the vast mining regions of Mexico and Argentina to the vital road networks of Jamaica, Honduras, and El Salvador—contractors face a common challenge: how to produce high-quality aggregates efficiently in remote or demanding locations.
Traditional fixed production lines are often too slow to install and too costly to move. To solve this, our APY4-S “4-in-1” and APY3-F “3-in-1” mobile crushing plants have become the gold standard for regional operators who demand mobility without sacrificing power.
Hot Selling Models in Latin America
The ANDAMINE APY4-S and APY3-F mobile crushers are modular crushing systems that function as complete production lines in a single unit, delivering maximum Return On Investment(ROI) while maintaining low operational costs. These two versatile models are designed to handle approximately 90% of market crushing applications, making them the ideal choice for most latin america customers seeking efficient and cost-effective crushing solutions.
APY4-S Mobile Crusher and Screen Plant
Capacity: 30-200 T/H
Output Size(mm): 5-10mm, 10-20mm, 20-40mm
Max. Feeder Size(mm): ＜500
- Main Crusher: Jaw Crusher + Cone Crusher
- Raw Materials: Hard & soft stone, granite, limstone, river stone, copper ore, iron ore, etc.
- Advantages:
1. This 4 in 1(feeding, primary crushing, secondary crushing, and screening) mobile crusher combines of vibrating feeder, jaw crusher, cone crusher and vibrating screen.
2. Lower investment, saving area, and high rate of investment return.
3. The vibrating feeder adopts frequency conversion control(Remotely controlled), which can adjust the feeding amount of the feeder according to different situations.
Get A Quote >
APY3-F Mobile Impact Crusher Plant
Capacity: 50-350 T/H
Output Size(mm): 0-5mm, 5-10mm, 10-20mm, 20-40mm
Max. Feeder Size(mm): ＜600
- Main Crusher: Impact Crusher
- Raw Materials: Medium-hard materials: limestone, concrete, asphalt wastes, etc.
- Advantages:
1. 3 in 1(Auto feeding, crushing, and screening)
2. Impact crusher: large crushing ratio and good particle shape.
3. Especially used for crushing concrete construction waste.
4. Equipped with European version of high cavity impact crusher, which has high crushing efficiency and versatility.
Get A Quote >
APY2-J Mobile Jaw Crusher Plant
- Capacity: 50-400 T/H
- Max. Feeder Size(mm): ＜720
- Output Size(mm): 10-20mm, 20-40mm, 40-60mm
- Main Function: Feeding and Crushing
- Raw Materials:
Hard and Medium-hardness rocks, limestone, granite, basalt, gold ore, iron ore, etc.
Get A Quote >
APY2-C Mobile Cone Crusher Plant
- Capacity: 100-310 T/H
- Max. Feeder Size(mm): ＜300
- Output Size(mm): 0-5mm, 5-10mm, 10-20mm
- Main Crusher: Cone Crusher
- Raw Materials:
Hard and ultra-hard stone: granite, basalt, cobblestone, etc.
Get A Quote >
Customizable Solutions for Diverse Output Sizes
Our mobile crushing plants are engineered to deliver precise material grading. Whether you need 0-5mm fines or 20-25mm aggregates, we can customize the screening configuration to match your exact production goals.
Benchmark Project in Latin America
✔ Supply high-quality aggregates for US construction projects;
✔ Expand business beyond saturated local markets;
✔ Establish cross-border operations despite zero prior import/export experience;
1. Optimal Equipment Configuration：
-Mobile crushing plant for flexible site deployment;
-US-standard aggregate production meeting ASTM specifications;
-Quick setup design for rapid market entry.
2. End-to-End Project Support:
-Recommended trusted customs brokers for smooth cross-border logistics;
-Provided complete import process guidance and documentation support;
-Calculated detailed TCO with no hidden cost surprises.
ANDAMINE’s professional guidance helped us break into the US market, transforming our local business into an international supplier.
More Projects in Latin America
ANDAMINE mobile crushers had reached to 10+ countries in Latin America: Salvador, Argentina, Mexico, Honduras, Jamaica, etc. And we have provided our LatAm customers with versatile and high-efficienct crushing and screening solutions and help them quickly recoup investment and make a profit. Contact us to get more details now.
How ANDAMINE Earned the Trust of a 60-Year Argentine Aggregate Giant
Operation Date: 12/23/2025
Customer Background: Renowned Argentine aggregate producer (60+ years of industry experience)
Project Context: Sourcing a high-end mobile crushing solution for a new green mining project requiring the processing of complex materials while meeting stringent environmental and output standards.
Get A Quote >

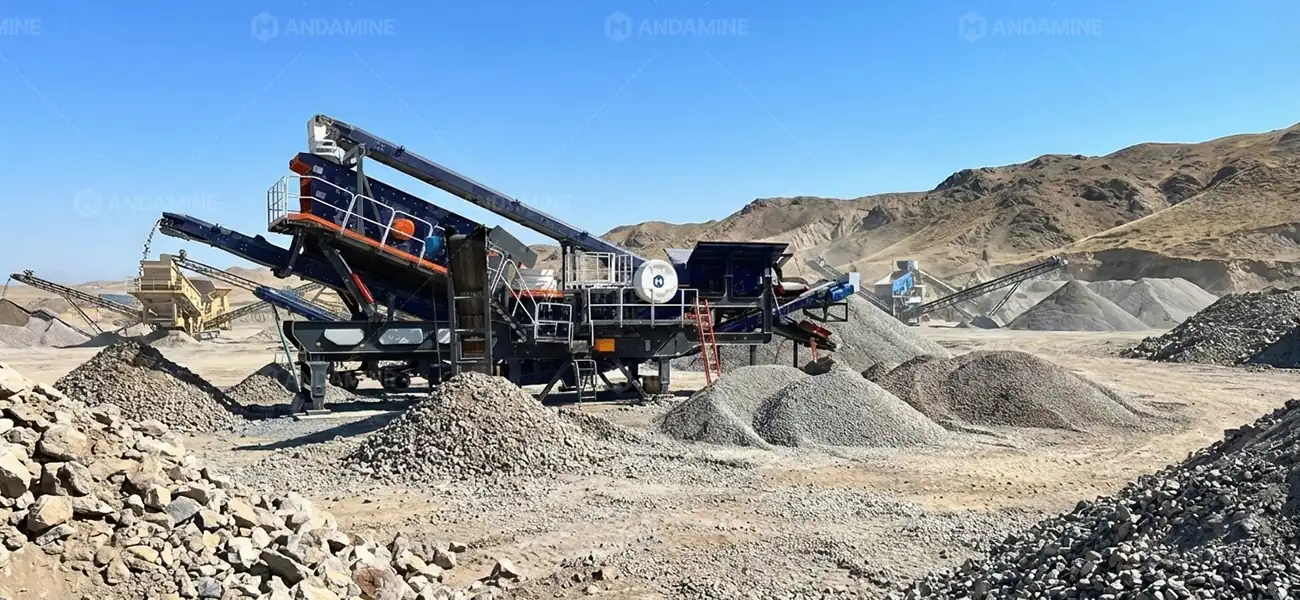

50t/h Mobile Crusher Plant In Salvador
Operation Date: 12/08/2025
Customer Background: A mine owner
Customer Needs: Upgrade existing stationary crushing plants and seek more efficient crushing plants.
Andamine Solutions: 4-in-1 APY4-S Mobile Crusher Plant
1. Foundation free and short installation time;
2. 4 in 1: feeding, primary jaw crusher, secondary cone crusher, and screening machine in one chasis;
3. Low investment cost, high ROI.
Get A Quote >
Mobile Cone Crusher Plant – Granite Aggregates Selling in Honduras
Capacity: 150T/H
Finished Product(mm): 5-10, 10-20
Configuration: Vibrating Feeder, Cone Crusher, Screen Machine, PLC Control Box, etc.
Feature: PLC control with display, one-button start, remote monitoring, bearing temp measurement, start-stop function
Customer’s Feedback: I am very grateful to the engineers of ANDAMINE for coming to my construction site and helping me complete the installation of the mobile crushing station. Now this crushing station is running well and the quality of the aggregates produced is also very high.
Get A Quote >
APY3-F 120t/h Mobile Impact Crushing Plant – Concrete Waste Processing in Colombia
Max Feeding Size: 500mm, with a small amount of steel bars
Finished Product(mm): 0-1/4’-3/4′-1′-2′(0-5-19-25-50mm)
Advantages:
1. Heavy-duty chassis, 3-axle design, better quality, more stable travel
2. Self-unloading iron remover effectively removes iron from crushed material
3. Impact crusher with new tech, hydraulic clearance adjustment, ZWZ brand bearings
4. Partially raised raw material bin, hydraulically foldable, locking system for easy transport.
Get A Quote >
Raw Materials & Application
Raw material:
Granite, Limestone, Gold Ore, Copper Ore, Iron Ore, Concrete Waste, Basalt, etc.
Areas of application:
Mobile crushing plants can be used to crush a variety of materials, such as iron ore, copper ore, limestone, granite, etc. Therefore, mobile crushing plants are widely used in quarries, commercial concrete, engineering construction, and construction waste fields, etc.
Features of Mobile Crusher
Intelligent Operating System
1. Integrated Control System – one-button start, can be operated by PLC touch screen or button, improve production efficiency;
2. IOT Remote Monitoring System – real-time monitoring of equipment operation status, automatic reminder of maintenance, and reduce failure rate;
3. Intelligent Feeding – the feeder is equipped with remote control, and the batching speed can be adjusted to ensure production continuity;
Large Volume Feeding Hopper
1. Large-Capacity Hoppers – Both primary and secondary crushers feature high-volume hoppers with double-layer reinforced side plates for enhanced durability;
2. Efficient Feeding System – The oversized hopper design enables easy loading and maintains consistent material flow for stable operation;
Free-foundation Installation
1. Free-Foundation Design – Integrated outriggers and steel support plates eliminate concrete foundations, reducing costs and setup time while ensuring operational stability;
2. Fast Deployment – The widened ground contact area lowers bearing capacity requirements, enabling immediate operation upon arrival at the site;
Modular Design
1. Modular & Universal Design – Features high structural strength and excellent versatility for flexible operations;
2. Maximized Versatility – Equipment with the same capacity can switch between models by replacing only a few components;
3. Quick Production Adjustment – Simply change the main machine to adapt to different materials;
Crushing Flow for Different Aggregates
ANDAMINE has provided over 1000+ custom crushing solutions to our client globally, offering specialized systems for a variety of materials, including hard stone, medium-hard stone, construction waste, etc. Our experts are ready to assist you with your equipment selection—contact ANDAMINE today for professional guidance!
ANDAMINE Service in Latin America
Project Consultant & Solution Offered
ANDAMINE professional engineer team can provide you with customized crushing plant solutions based on the basic conditions of your project, such as budget, raw materials, productivity, output size, etc.
On-site Installation & Training
ANDAMINE can send technical experts to the site to help you install and debug the equipment on site to ensure smooth operation.
Spare Parts Availability
Setup comprehensive spare parts inventory, providing essential components such as jaw plates, liners, conveyor belts, bearings, hydraulic parts, and more.
Customized Crushing and Screening Solutions
According to the basic information of your crushing project, our engineer will give you customized crushing and screening solutions.
More Mobile Crusher Models
APY2-V Mobile Sand-making Machine
- Capacity: 60-400t/h
- Max. Feeder Size(mm): 30-55
- Output Size(mm): 0-4.75-30
- Main Configuration: Vibrating screen, VSI Crusher, PLC control box, etc.
Get A Quote >
APY2-F Mobile Impact Crusher
- Capacity: 60-350t/h
- Max. Feeder Size(mm): 300
- Feature: 2 in 1(crushing and screening)
- Main Configuration: Impact Crusher, Vibrating screen, PLC control box, etc.
Get A Quote >
APY-S Mobile Screening Machine
- Capacity: 65-400 T/H
- Max. Feeder Size(mm): ＜200
- Amplitude(mm): 8-12
- Main Configuration: vibrating screening, PLC control box, etc.
Get A Quote >
APYL Crawler Mobile Crusher
- Capacity: 50-300 T/H
- Max. Feeder Size(mm): ＜700
- Output Size(mm): 3-250
- Main Configuration: vibrating feeder, crusher machine, PLC control box, etc.
Get A Quote >
FAQs
What types of raw materials are suitable for the mobile crushing plant?
- Stone: Limestone, Granite, Marble, Basalt, River Pebbles, Shale, Coal, Pebbles, etc.
- Ore: Copper Ore, Iron ore, etc.
- Construction Wastes: Concrete Wastes, Bricks Wastes, etc.
What are the specific output size ranges that can be achieved?
- Customized output Size.
- 0-5mm; 5-10mm; 10-20mm; 20mm and above.
